Our Products

Integrate 4

Applications : Interior, Direct

Mounting Options : Surface Mounted, Recessed

LEDs : Pro 80, Pro 90 112, Pro 90 168, Pro 90 224, Pro 90 TW, Pro 95, NHD TW, DTWX, DTW, RGBW, HHD, RGBWH, COF, HEC, HEXL SW, HPRO SW, Pro 90 240, Pro 90 240 TW, HHD TW

CCT – Colour (k) : 2200k, 2400k, 2500k, 2700k, 3000k, 3500k, 4000k, 5000k, 6000k2200-3000k, 2200-3500k, 2200-4000k, 2200-5000k, 1900-3000k Red, Green, Blue, Yellow

CRI : >80, >90, >91, >92, >94, >95, >97

Mounting Method : FC – Fixing Clip Flat, FC30 – Fixing Clip 30°, FC45 – Fixing Clip 45°, FC60 – Fixing Clip 60°, MP – Mounting Profile Flat, MP30 – Mounting Profile 30°, MP45 – Mounting Profile 45°, MP60 – Mounting Profile 60°, MS – Magnetic Strip

Optics : HO – High Square Opal, HD – High Square Diffuse, HC – High Square Clear, RO – Round Opal, RD – Round Diffuse, RC – Round Clear, LD – Low Square Diffuse, LO – Low Square Opal, LC – Low Square Clear

IP Rating : IP40, IP44

Configure

Choose some options below to generate your own configured data sheet

Reset Filters

Integrate 4

Your Product Code:

Download DWG

Power

BrandIntegrate

Model

LED

CCT

Mounting Method

Optics

Cap

Rating

CRI

Application

Mounting Type

LED Lumens

w/m

Lumens/w

Dimension

Lifetime

Project Name:

Luminaire Ref:

Special Notes:

PDF Preview

AFX Product Code

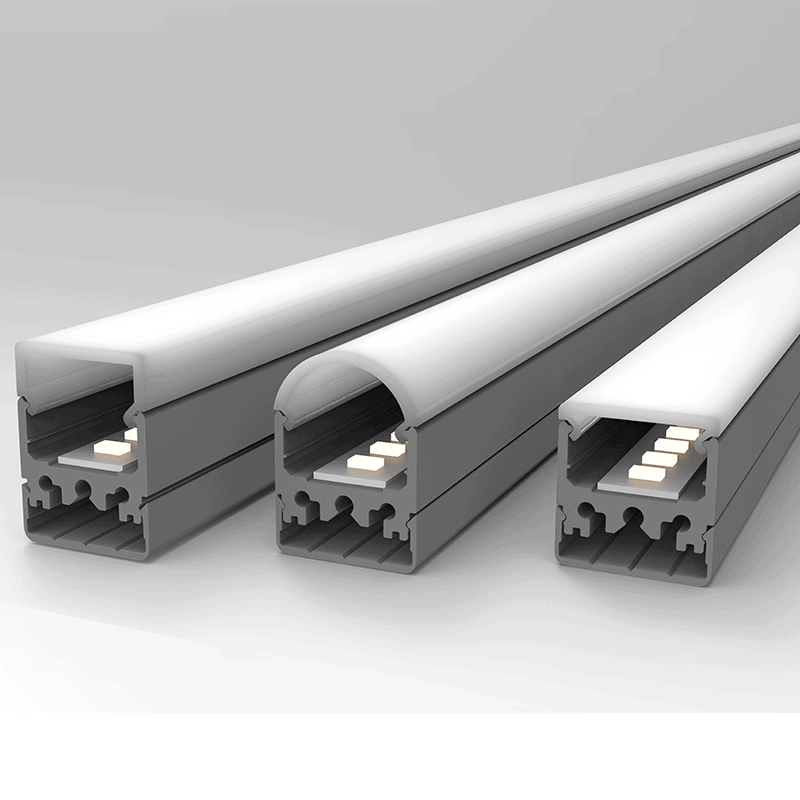

Integrate Overview

A portfolio of mix and match Linear LED tape, profiles covers and optics to create custom made / bespoke luminaires for specific project applications
Surface Mounted / Suspended Direct / Indirect, Recessed, Plaster In options
Diffuser optics, Clear, Diffuse, Opal, Blacklight Opal covers
Darklight Grazer optics, 10° Wall grazer or 30° and 60° general illumination optics allow precise light control
Ingress protection ratings of IP40, IP44 and IP67
Bridgelux, Nichia, Osram, Samsung and Xicato LED of the highest quality
One Bin Only Up to L90/B10 60,000hrs

Physical

Housing Material - extruded aluminium Cover / Optic Material - Textured acrylic UV and impact resistant opal diffuser

Electrical

Input Voltage 24 Volt DC Constant Voltage (23 V min, 25 V max.) Protected against electrostatic discharge +/– 2,000 V Maximum Cable Size and Run lengths ('Refer to Architectural FX document Max Cable lengths from PSU to LEDs') When mounting Power Supply and Interface Units remotely please ensure that adequate sizes cables are used to avoid volt drop over distance Parallel wiring is recommended. For Series (Daisy Chain) wiring (Not generally recommended. Please refer to Architectural FX technical dept. When First fix wiring please consider the number of Power Supply and Interface Units required and relevant Cable entry points Fixture Cable from Power or Control Interface devices to fixtures Single Colour - 2 Core Tuneable White - 3 Core RGB - 4 Core RGB W -5 Core Note: Architectural FX fixtures standard cable 0.34mm

Control / Power Options

On / Off Mains - Triac Leading/Trailing Edge Dimmable 0-10v Dali Dali2 DMX Casambi BLE Xicato BLE Refer to Lighting specification/Luminaire schedule for any specific project requirements. Refer to Architectural FX wiring diagrams for specific details on each Control protocol. All wiring configurations and Power Supply and Dimming Interface combinations will be agreed prior to delivery. Generally at quotation and ordering stage

Environmental

Temperature range: -20 to +45 °C Ambient temperature: + 10 to +45 °C Storage temperature Ts min = –30°C / Ts max = 85°C

Other General Recommendations

Architectural FX fixtures are fully assembled to custom made lengths and 24hr tested before delivery to the project. Before proceeding to manufacture we require site measured dimensions. This will avoid any integration issues when the products are installed. Detail note: Each length of product or fixture is supplied as the 'Delivered' length given. Where applicable the LED will be centralized on the profile to create even dark ends. Delivered fixture lengths are dependent on the LED increment LED technology is changing very rapidly; although at time of specifying this is the most suitable product, this may not be the case directly prior to installation. Architectural FX will confirm at time of order that this is still the most up to date product. Refer to manufacturer's installation and operation instructions
